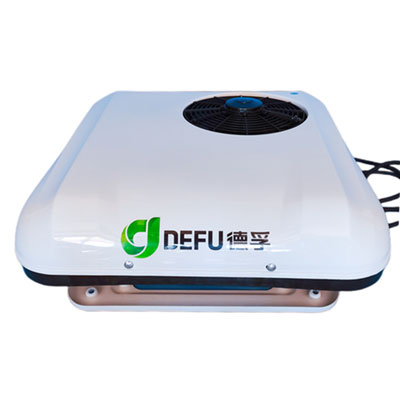

  • DFX Rooftop Air Conditioner



    Rooftop air conditioner, also called roof air conditioner/parking air conditioner, belonging to vehicle roof systems, consumes electricity and mainly for air circulation and cabin cooling/heating. It’s easy to install, fitting for lighttrucks, vans, tricycles, caravans and motorhomes. This type is equipped with scroll compressor, 12V, 24V and 48-72V for option.

    DC12V Parameters
    Machine size 700*700*149mm Weight 26KG
    Power 300-800W Rated voltage 12V
    Cooling capacity 2000W/7000BTU Battery requirements ≥150A
    Rated current 50A Refrigerant R-134a
    Max current 80A Electronicfan air volume 2000M³/h

    DC24V Parameters
    Machine size 700*700*149mm Weight 26KG
    Power 500-1000W Rated voltage 12V
    Cooling capacity 2600W/8000BTU Battery requirements ≥100A
    Rated current 35A Refrigerant R-134a
    Max current 50A Electronicfan air volume 2000M³/h

    DC 48-72V Parameters
    Machine size 700*700*149mm Weight 26KG
    Power 500-1000W Input voltage 43-86V
    Cooling capacity  2200W/7500BTU  Heating power 1200W/4000BTU
    Air volume 2000M³/h Refrigerant R-134a
